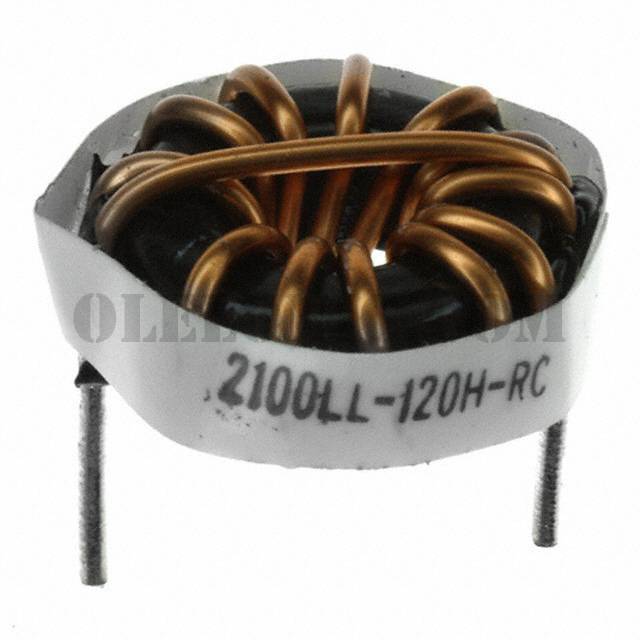

2100LL-120-H-RC


2100LL-120-H-RC

Part Number2100LL-120-H-RC

Manufacturer

Description

Datasheet

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2100LL-120-H-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package144
ManufacturerBourns Inc.
Series2100LL
PackagingBulk
Part StatusActive
TypeToroidal
Material - CoreSendust
Inductance12µH
Tolerance±15%
Current Rating (Amps)10.9A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)6mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Horizontal (Open)
Supplier Device Package-
Size / Dimension0.860" Dia (21.84mm)
Height - Seated (Max)0.450" (11.43mm)
Base Part Number2100LL
