Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLE Series
Standard Package	1000
Manufacturer	Rubycon
Series	LLE
Packaging	Bulk
Part Status	Active
Capacitance	18µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	15000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	113mA @ 120Hz
Ripple Current @ High Frequency	214mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160LLE22MEFC10X12.5	Rubycon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
160LLE15MEFC10X9	Rubycon, 15µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
400LLE1R8MEFC8X9	Rubycon, 1.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
160LLE10MEFC8X9	Rubycon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
250LLE12MEFC10X12.5	Rubycon, 12µF 250V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
200LLE6R8MEFC8X9	Rubycon, 6.8µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
450LLE47MEFC18X25	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
450LLE10MEFC12.5X20	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
400LLE4.7MEFCT810X12.5	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
200LLE10MEFC8X11.5	Rubycon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
250LLE18MEFC10X16	Rubycon, 18µF 250V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
200LLE4R7MEFC6.3X11	Rubycon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View

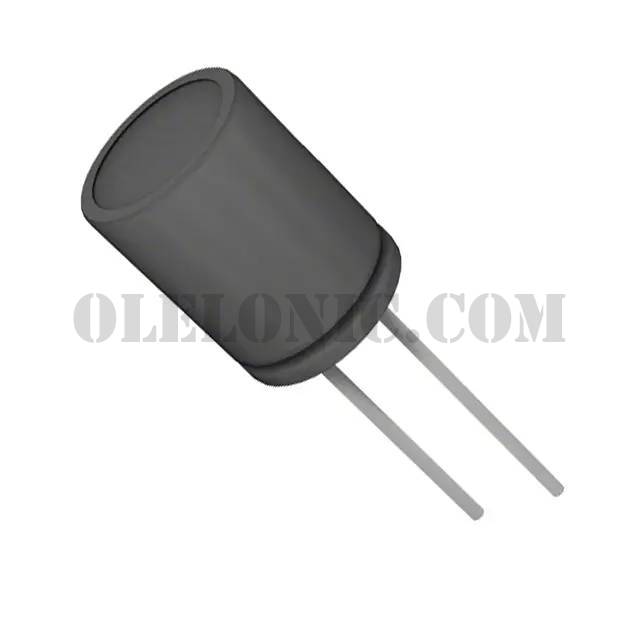

200LLE18MEFC10X12.5

Part Number200LLE18MEFC10X12.5
