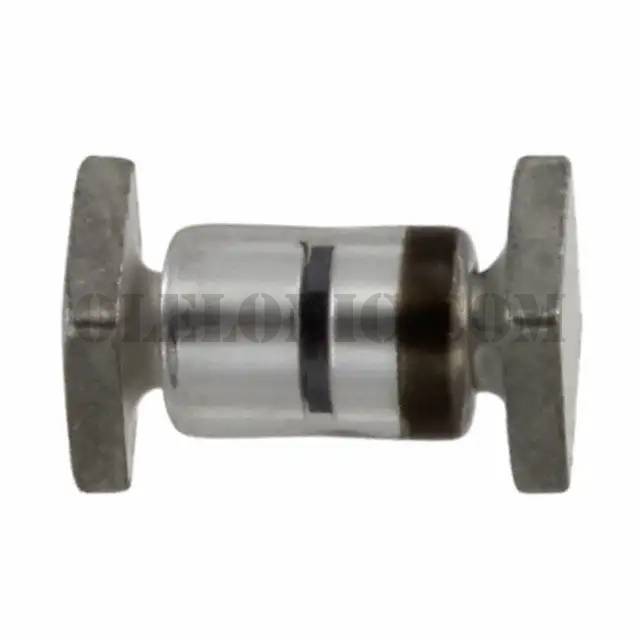

1N5806US

1N5806US

Part Number1N5806US

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 150V 1A D5A

Datasheet1N5802, 04US, 06US and URS

Package / CaseSQ-MELF, A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 150V 1A Surface Mount D-5A

To learn about the specification of 1N5806US, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5806US with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5806US.
We are offering 1N5806US for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5806US - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5802, 04US, 06US and URS
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	875mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	25ns
Current - Reverse Leakage @ Vr	1µA @ 150V
Capacitance @ Vr, F	25pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SQ-MELF, A
Supplier Device Package	D-5A
Operating Temperature - Junction	-65°C ~ 175°C
