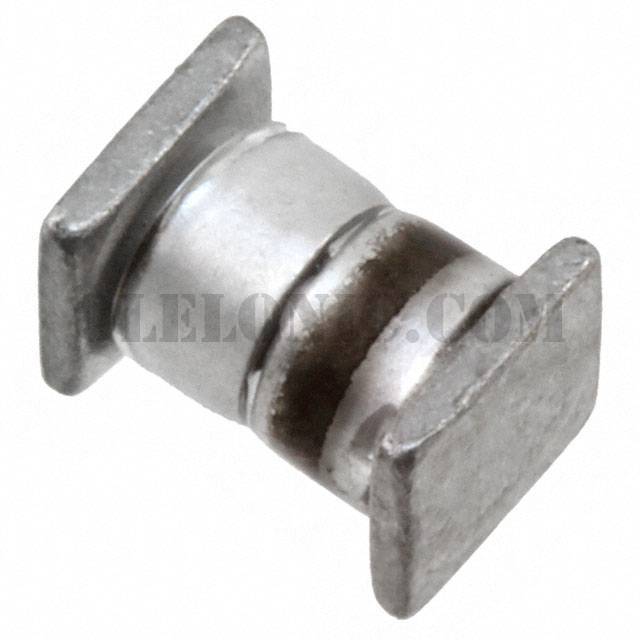

1N5417US

1N5417US

Part Number1N5417US

ManufacturerMicrosemi Corporation

DescriptionDIODE GEN PURP 200V 3A D5B

Datasheet1N5415 - 20US

Package / CaseE-MELF

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 3A Surface Mount D-5B

To learn about the specification of 1N5417US, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1N5417US with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 1N5417US.
We are offering 1N5417US for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

1N5417US - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	1N5415 - 20US
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.5V @ 9A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150ns
Current - Reverse Leakage @ Vr	1µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	E-MELF
Supplier Device Package	D-5B
Operating Temperature - Junction	-65°C ~ 175°C
