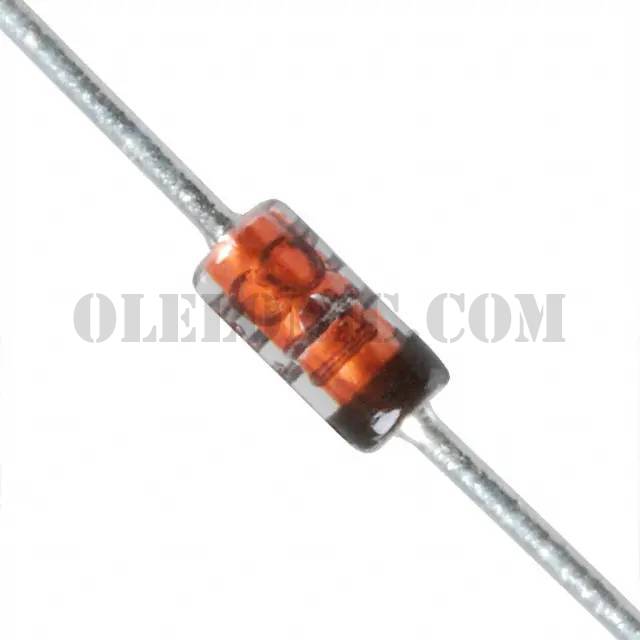

1N4148TR


1N4148TR

Part Number1N4148TR

Manufacturer

Description

Datasheet

Package / CaseDO-204AH, DO-35, Axial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1N4148TR - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package10000
ManufacturerON Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1V @ 10mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr5µA @ 75V
Capacitance @ Vr, F4pF @ 0V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35
Operating Temperature - Junction-65°C ~ 175°C
Base Part Number1N4148
