Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLS Series
Standard Package	1000
Manufacturer	Rubycon
Series	ZLS
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.75A @ 120Hz
Ripple Current @ High Frequency	2.5A @ 100kHz
Impedance	17 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16ZLS3300MEFC12.5X30	Rubycon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS470MEFC10X16	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS1200MEFC12.5X25	Rubycon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS3900MEFC12.5X25	Rubycon, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS2200MEFC10X25	Rubycon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS1000MEFC8X20	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS1800MEFC12.5X35	Rubycon, 1800µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS680MEFC10X23	Rubycon, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS1000MEFC10X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS470MEFC8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS390MEFC8X20	Rubycon, 390µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS270MEFC8X16	Rubycon, 270µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View

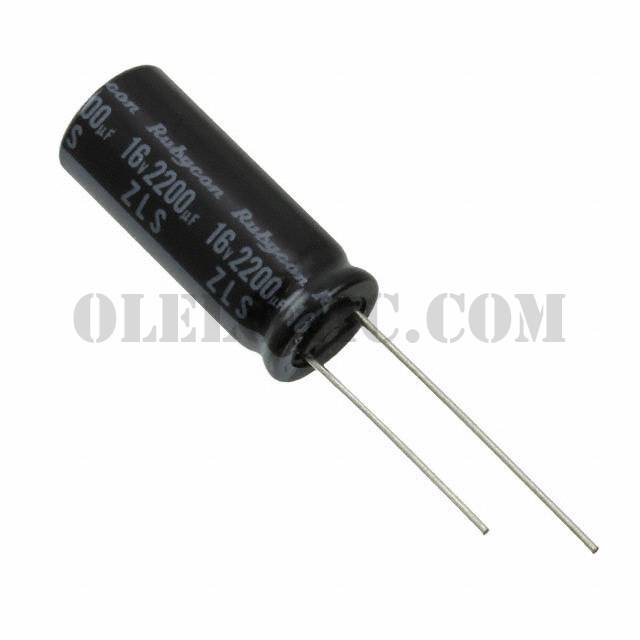

16ZLS2200MEFC10X25

Part Number16ZLS2200MEFC10X25
