Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLS Series
Standard Package	600
Manufacturer	Rubycon
Series	ZLS
Packaging	Bulk
Part Status	Active
Capacitance	3900µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.499A @ 120Hz
Ripple Current @ High Frequency	3.57A @ 100kHz
Impedance	12 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16ZLS470MEFC8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS5600MEFC12.5X35	Rubycon, 5600µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS4700MEFC12.5X30	Rubycon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
16ZLS3900MEFC12.5X35	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS3900MEFC12.5X25	Rubycon, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS1500MEFC10X16	Rubycon, 1500µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
25ZLS820MEFC10X20	Rubycon, 820µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS1500MEFC8X20	Rubycon, 1500µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
10ZLS1000MEFC10X12.5	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS1800MEFC12.5X35	Rubycon, 1800µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
35ZLS330MEFC10X12.5	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View
25ZLS2200MEFC12.5X30	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLS	View

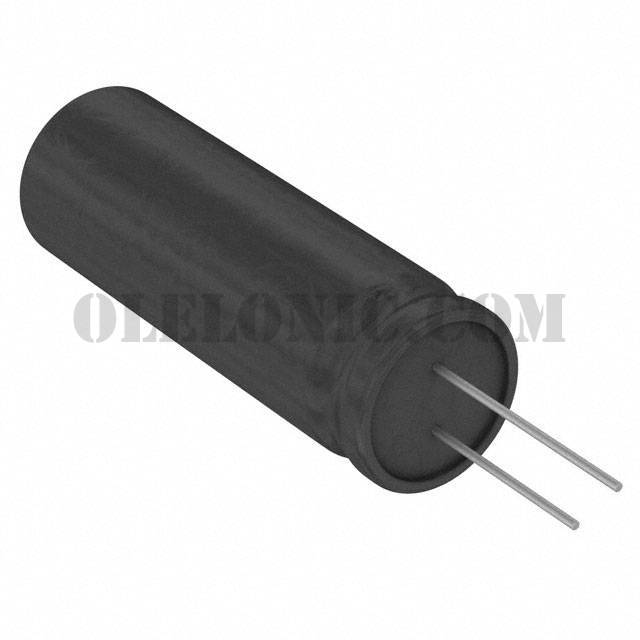

16ZLS3900MEFC12.5X35
