Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXM Series
Standard Package	2000
Manufacturer	Rubycon
Series	YXM
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	147mA @ 120Hz
Ripple Current @ High Frequency	210mA @ 100kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16YXM220MEFC8X11.5	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
50YXM33MEFC6.3X11	Rubycon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
25YXM47MEFC5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
100YXM4.7MEFC5X11	Rubycon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
50YXM10MEFCTA5X11	Rubycon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
50YXM10MEFCTA5X11	Rubycon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
25YXM100MEFC6.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
50YXM10MEFC5X11	Rubycon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
16YXM100MEFC6.3X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
10YXM330MEFC8X11.5	Rubycon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
50YXM22MEFCT15X11	Rubycon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View
50YXM47MEFC6.3X11	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXM	View

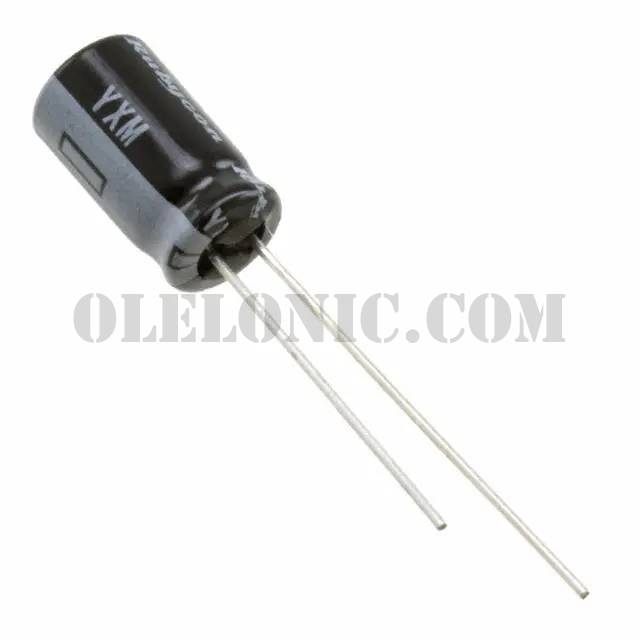

16YXM100MEFC6.3X11

Part Number16YXM100MEFC6.3X11
