Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXJ Series
Standard Package	1
Manufacturer	Rubycon
Series	YXJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	280mA @ 120Hz
Ripple Current @ High Frequency	400mA @ 100kHz
Impedance	220 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16YXJ1000MT810X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
35YXJ33M5X11	Rubycon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
10YXJ100MTA5X11	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXJ	View
6.3YXJ470M6.3X11	Rubycon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXJ	View
50YXJ220M10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
100YXJ10M5X11	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
16YXJ470M8X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
16YXJ2200M12.5X20	Rubycon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
63YXJ470M12.5X25	Rubycon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
35YXJ470MCA10X16	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
25YXJ2200M12.5X25	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
50YXJ1000M16X25	Rubycon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View

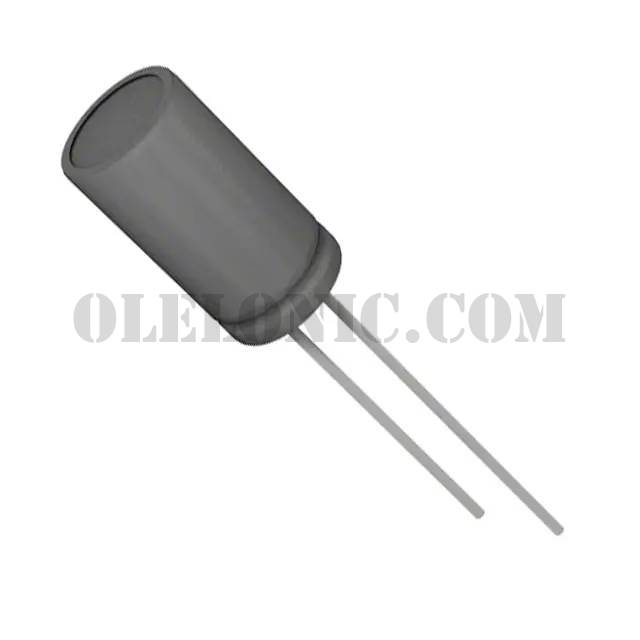

16YXJ220MT16.3X11

Part Number16YXJ220MT16.3X11
