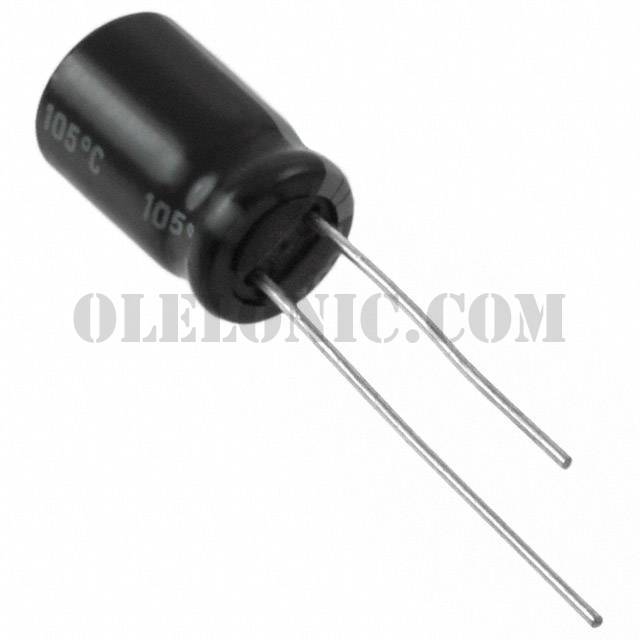

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	2000
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	352mA @ 120Hz
Impedance	130 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16YXG3900MEFC12.5X40	Rubycon, 3900µF 16V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
50YXG22MEFC5X11	Rubycon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
25YXG330MEFC8X11.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
16YXG1000MEFC10X20	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
16YXG100MEFC5X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, YXG	View
100YXG820MEFC18X40	Rubycon, 820µF 100V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
25YXG330MEFC10X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
35YXG1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View
50YXG150MEFC10X12.5	Rubycon, 150µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
25YXG220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXG	View
10YXG1000MEFCT810X16	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXG	View
35YXG1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXG	View

16YXG330MEFC8X11.5

Part Number16YXG330MEFC8X11.5
