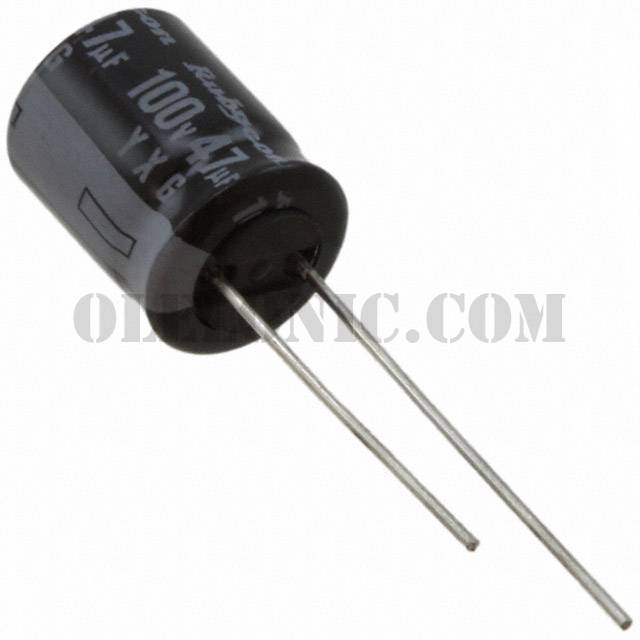

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXG Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXG
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	144mA @ 120Hz
Ripple Current @ High Frequency	288mA @ 100kHz
Impedance	430 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
