Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	3000
Manufacturer	Rubycon
Series	PK
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	75mA @ 120Hz
Ripple Current @ High Frequency	112.5mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16PK220MEFC6.3X11	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
6.3PK680MEFC6.3X11	Rubycon, 680µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
35PK470MEFCT810X12.5	Rubycon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK6800MEFC12.5X25	Rubycon, 6800µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
200PK100MEFC12.5X25	Rubycon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
400PK33MEFC12.5X25	Rubycon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK2R2MEFC8X11.5	Rubycon, 2.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
450PK100MEFC18X40	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
25PK10000MEFC18X35.5	Rubycon, 10000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
63PK220MEFC10X16	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
50PK2200MEFC16X31.5	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View
10PK1000MEFC8X11.5	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, PK	View

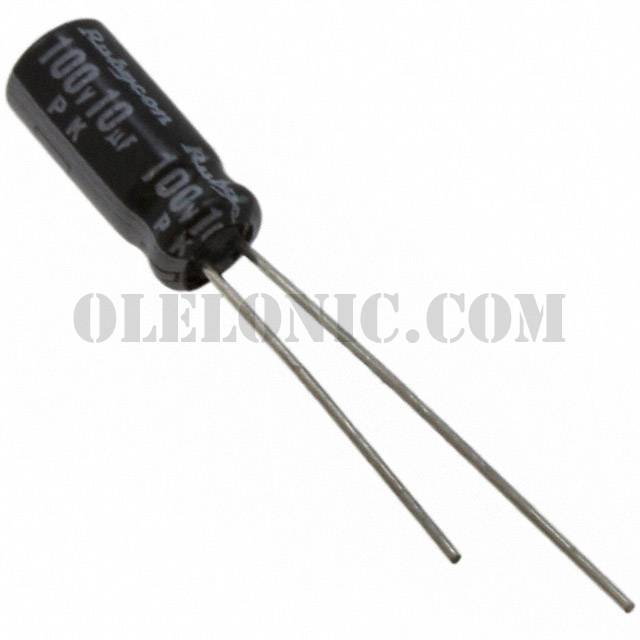

100PK10MEFC5X11

Part Number100PK10MEFC5X11
