Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	160V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	890mA @ 120Hz
Ripple Current @ High Frequency	1.24A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160TXW270MEFC12.5X40	Rubycon, 270µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW470MEFC16X40	Rubycon, 470µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW220MEFC8X60	Rubycon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
250TXW220MEFC18X30	Rubycon, 220µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW390MEFR18X35	Rubycon, 390µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
220TXW220MEFC12.5X50	Rubycon, 220µF 220V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
63TXW470MEFC8X60	Rubycon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
160TXW82MEFC10X25	Rubycon, 82µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW82MEFC18X30	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
400TXW100MEFC18X30	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW470MEFC18X40	Rubycon, 470µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW220MEFC16X30	Rubycon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

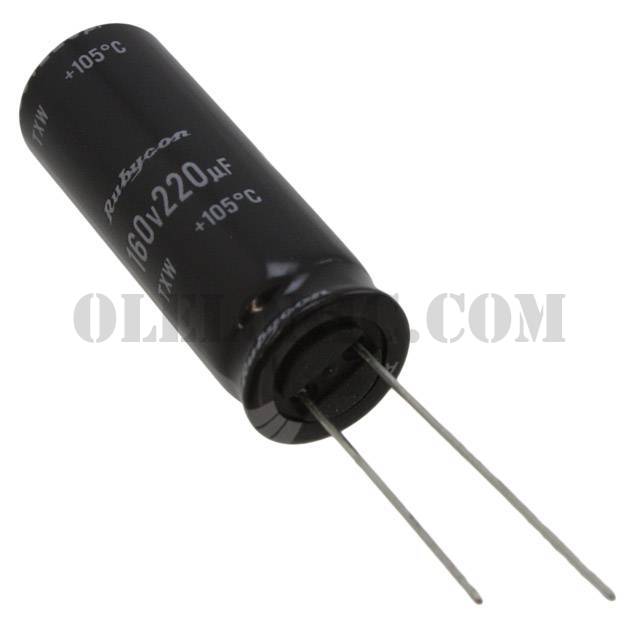

160TXW220MEFC12.5X35

Part Number160TXW220MEFC12.5X35
