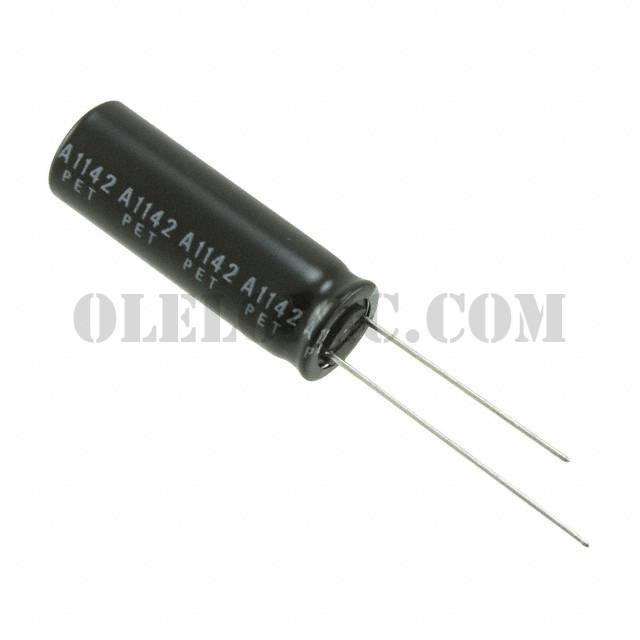

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.16A @ 120Hz
Ripple Current @ High Frequency	2.1A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.280" (32.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100TXW82MEFC8X25	Rubycon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
450TXW100MEFC18X35	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW100MEFC8X30	Rubycon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
160TXW270MEFC12.5X40	Rubycon, 270µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW330MEFC12.5X50	Rubycon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW220MEFC12.5X35	Rubycon, 220µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW120MEFC18X40	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW180MEFC10X50	Rubycon, 180µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW220MEFC16X30	Rubycon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW180MEFC16X25	Rubycon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
420TXW100MEFCCC16X40	Rubycon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW150MEFC12.5X25	Rubycon, 150µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

63TXW390MEFC10X30

Part Number63TXW390MEFC10X30
