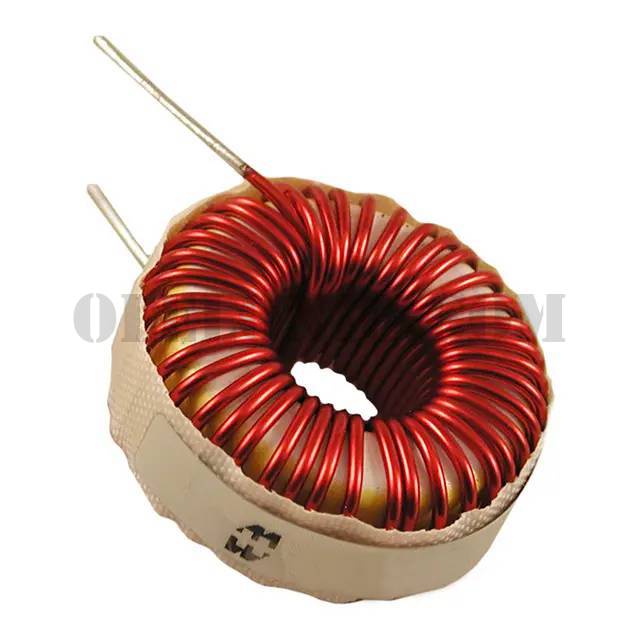

1540M12


1540M12

Part Number1540M12

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1540M12 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerHammond Manufacturing
Series1540
PackagingBulk
Part StatusActive
TypeToroidal
Material - Core-
Inductance150µH
Tolerance±15%
Current Rating (Amps)4.75A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)46mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseRadial, Vertical (Open)
Supplier Device Package-
Size / Dimension1.250" Dia x 0.625" W (31.75mm x 15.88mm)
Height - Seated (Max)-
