122NQ030-1

122NQ030-1

Part Number122NQ030-1

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 30V 120A PRM1-1

Datasheet122NQ030(R)-1

Package / CaseHALF-PAK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

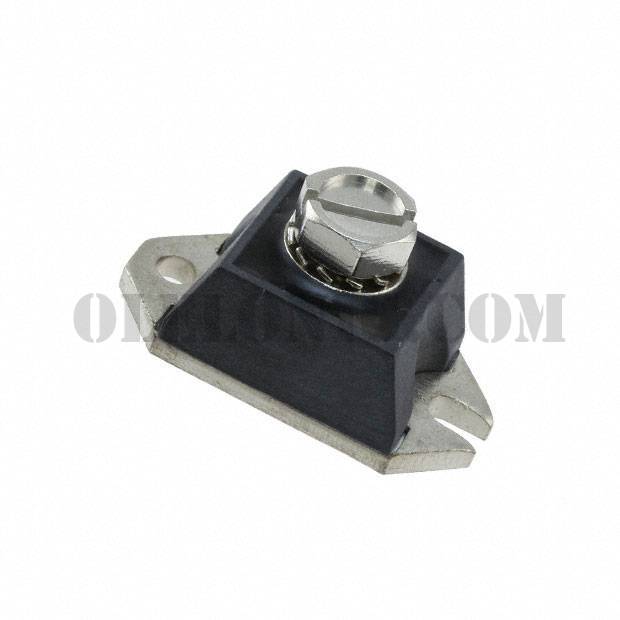

Detailed DescriptionDiode Schottky 30V 120A Chassis Mount PRM1-1 (Half Pak Module)

To learn about the specification of 122NQ030-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 122NQ030-1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 122NQ030-1.
We are offering 122NQ030-1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

122NQ030-1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	122NQ030(R)-1
Standard Package	27
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	120A
Voltage - Forward (Vf) (Max) @ If	490mV @ 120A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10mA @ 30V
Capacitance @ Vr, F	7400pF @ 5V, 1MHz
Mounting Type	Chassis Mount
Package / Case	HALF-PAK
Supplier Device Package	PRM1-1 (Half Pak Module)
Operating Temperature - Junction	-55°C ~ 150°C
