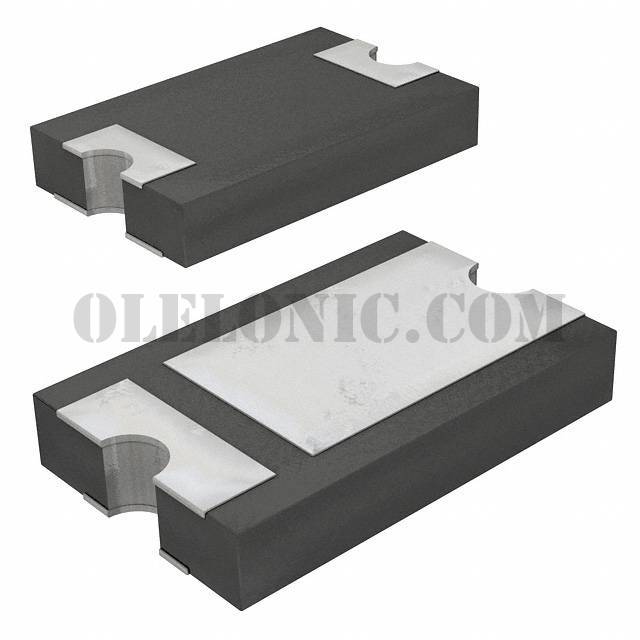

CDBZ5T1045-HF


CDBZ5T1045-HF

Part NumberCDBZ5T1045-HF

Manufacturer

Description

Datasheet

Package / CaseZ5-T

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CDBZ5T1045-HF - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerComchip Technology
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45V
Current - Average Rectified (Io)10A
Voltage - Forward (Vf) (Max) @ If550mV @ 10A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr100µA @ 45V
Capacitance @ Vr, F-
Mounting TypeSurface Mount
Package / CaseZ5-T
Supplier Device PackageSMC (Z5-T)
Operating Temperature - Junction-55°C ~ 150°C
