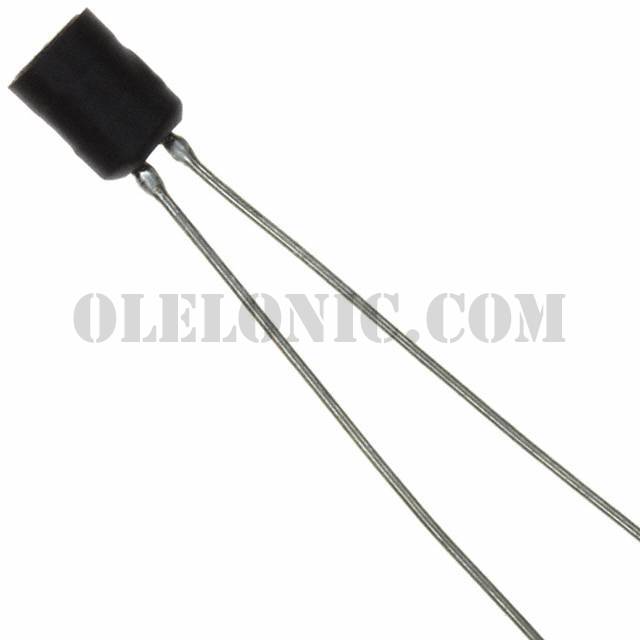

11R224C


11R224C

Part Number11R224C

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

11R224C - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package200
ManufacturerMurata Power Solutions Inc.
Series1100R
PackagingBulk
Part StatusActive
TypeWirewound
Material - Core-
Inductance220µH
Tolerance±10%
Current Rating (Amps)240mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)2.4Ohm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 85°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.295" (7.50mm)
