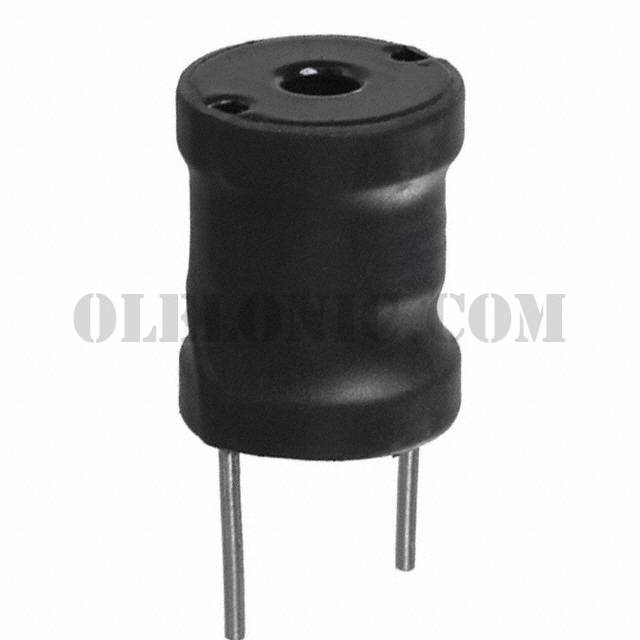

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1110 Series
Standard Package	298
Manufacturer	Bourns Inc.
Series	1110
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	560µH
Tolerance	±10%
Current Rating (Amps)	800mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	696mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 105°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.660" Dia (16.76mm)
Height - Seated (Max)	0.840" (21.34mm)
Base Part Number	1110
