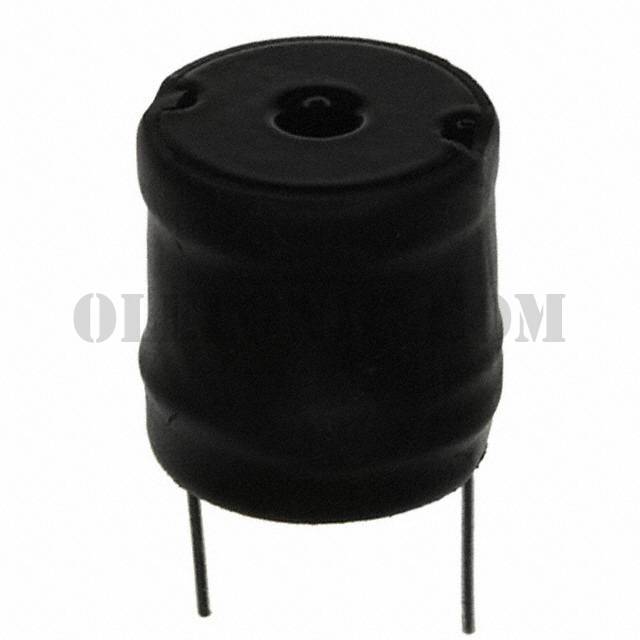

1120-680K-RC


1120-680K-RC

Part Number1120-680K-RC

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

1120-680K-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package206
ManufacturerBourns Inc.
Series1120
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance68µH
Tolerance±10%
Current Rating (Amps)4.8A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)53mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical Cylinder
Supplier Device Package-
Size / Dimension0.810" Dia (20.57mm)
Height - Seated (Max)0.840" (21.34mm)
Base Part Number1120
