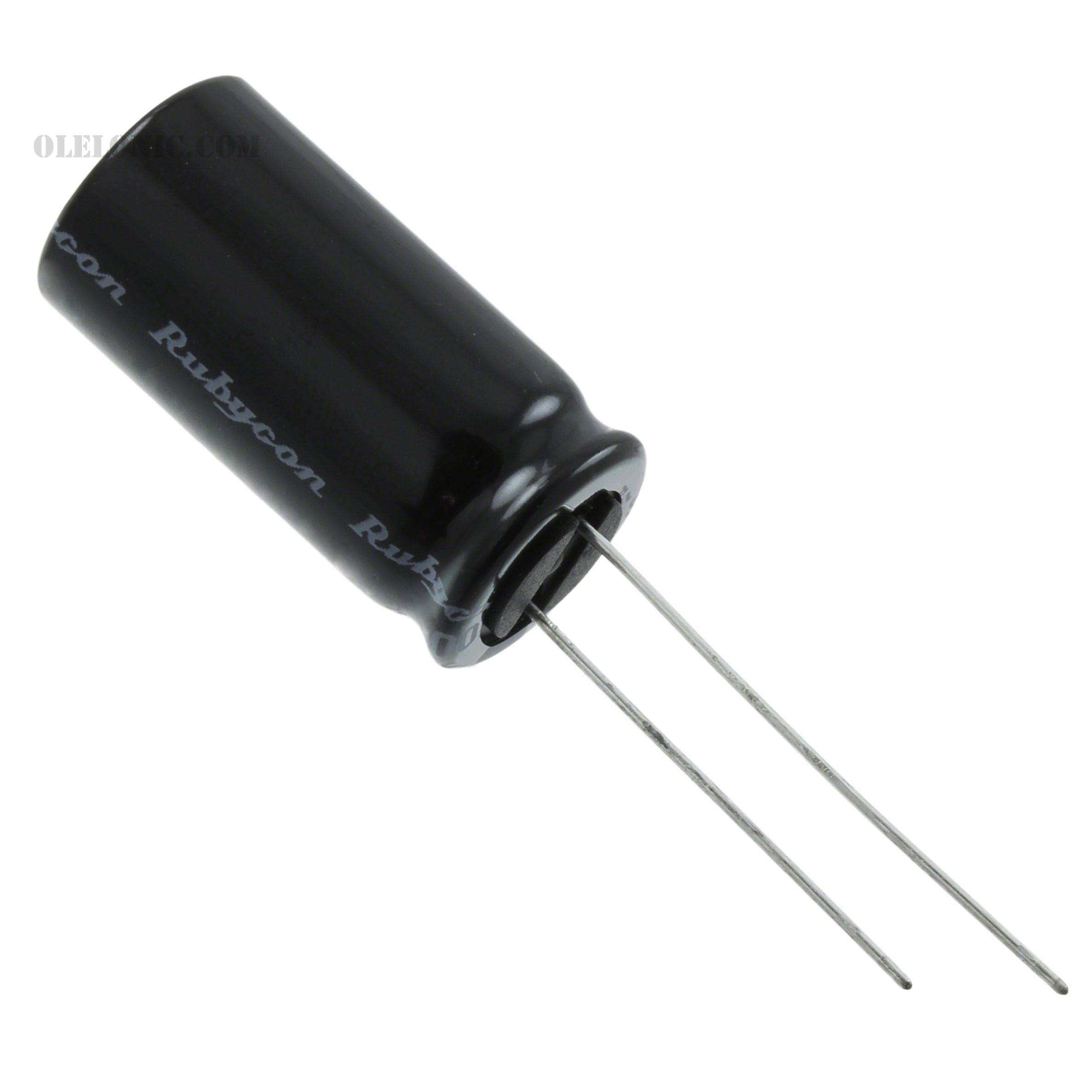

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLS Series
Standard Package	1000
Manufacturer	Rubycon
Series	ZLS
Packaging	Bulk
Part Status	Active
Capacitance	3900µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.03A @ 120Hz
Ripple Current @ High Frequency	2.9A @ 100kHz
Impedance	15 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
