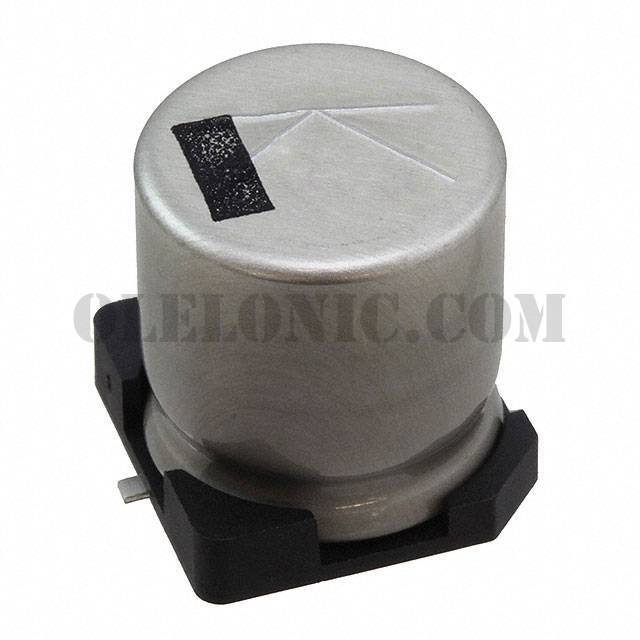

100SGV47M12.5X13.5


100SGV47M12.5X13.5

Part Number100SGV47M12.5X13.5

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

100SGV47M12.5X13.5 - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package200
ManufacturerRubycon
SeriesSGV
PackagingTape & Reel (TR)
Part StatusActive
Capacitance47µF
Tolerance±20%
Voltage - Rated100V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
Polarization-
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency160mA @ 120Hz
Ripple Current @ High Frequency240mA @ 10kHz
Lead Spacing-
Size / Dimension0.492" Dia (12.50mm)
Height - Seated (Max)0.551" (14.00mm)
Surface Mount Land Size0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
