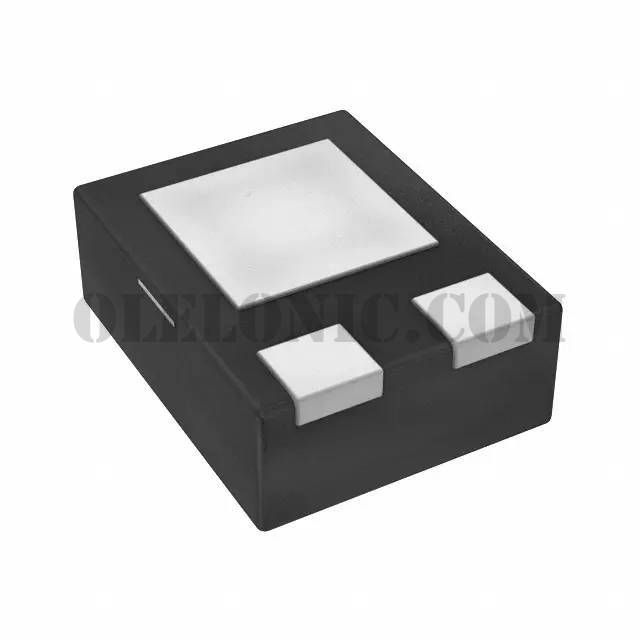

ZXTN620MATA

ZXTN620MATA

Part NumberZXTN620MATA

ManufacturerDiodes Incorporated

DescriptionTRANS NPN 80V 3.5A 3-DFN

DatasheetZXTN620MA

Package / Case3-UDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 3.5A 160MHz 3W Surface Mount DFN2020B-3

To learn about the specification of ZXTN620MATA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXTN620MATA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXTN620MATA.
We are offering ZXTN620MATA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXTN620MATA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	ZXTN620MA
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	3.5A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	325mV @ 300mA, 3.5A
Current - Collector Cutoff (Max)	25nA
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 200mA, 2V
Power - Max	3W
Frequency - Transition	160MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UDFN
Supplier Device Package	DFN2020B-3
Base Part Number	ZXTN620MA
