ZXT10N20DE6TA

ZXT10N20DE6TA

Part NumberZXT10N20DE6TA

ManufacturerDiodes Incorporated

DescriptionTRANS NPN 20V 3.5A SOT23-6

DatasheetZXT10N20DE6

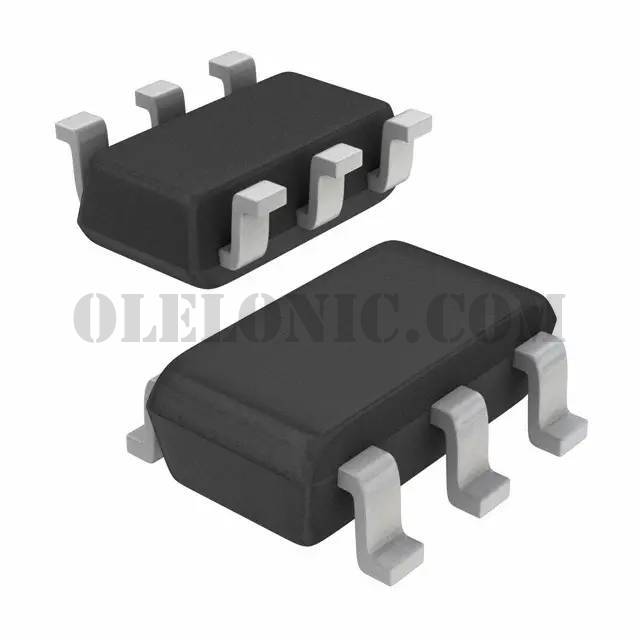

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 20V 3.5A 140MHz 1.1W Surface Mount SOT-23-6

To learn about the specification of ZXT10N20DE6TA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZXT10N20DE6TA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZXT10N20DE6TA.
We are offering ZXT10N20DE6TA for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZXT10N20DE6TA - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	ZXT10N20DE6
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	3.5A
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	250mV @ 100mA, 3.5A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2A, 2V
Power - Max	1.1W
Frequency - Transition	140MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Supplier Device Package	SOT-23-6
Base Part Number	ZXT10N20D
