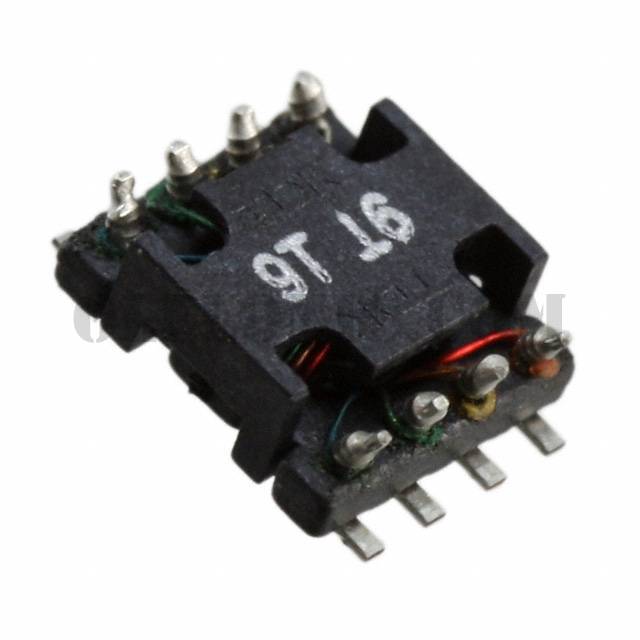

ZCYS51R5-M4PAT-01

Part NumberZCYS51R5-M4PAT-01

ManufacturerTDK Corporation

DescriptionCMC 500MA 4LN 200 OHM SMD

DatasheetZCYS Series

Package / Case-

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4 Line Common Mode Choke Surface Mount 200 Ohms @ 100MHz 500mA DCR 200mOhm

To learn about the specification of ZCYS51R5-M4PAT-01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ZCYS51R5-M4PAT-01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ZCYS51R5-M4PAT-01.
We are offering ZCYS51R5-M4PAT-01 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ZCYS51R5-M4PAT-01 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

ZCYS Series

Standard Package

Manufacturer

TDK Corporation

Series

ZCYS

Packaging

Cut Tape (CT)

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

200 Ohms @ 100MHz

Current Rating (Max)

500mA

DC Resistance (DCR) (Max)

200mOhm

Voltage Rating - DC

50V

Voltage Rating - AC

Operating Temperature

-25°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.224" L x 0.276" W (5.70mm x 7.00mm)

Height (Max)

0.098" (2.50mm)

Package / Case
