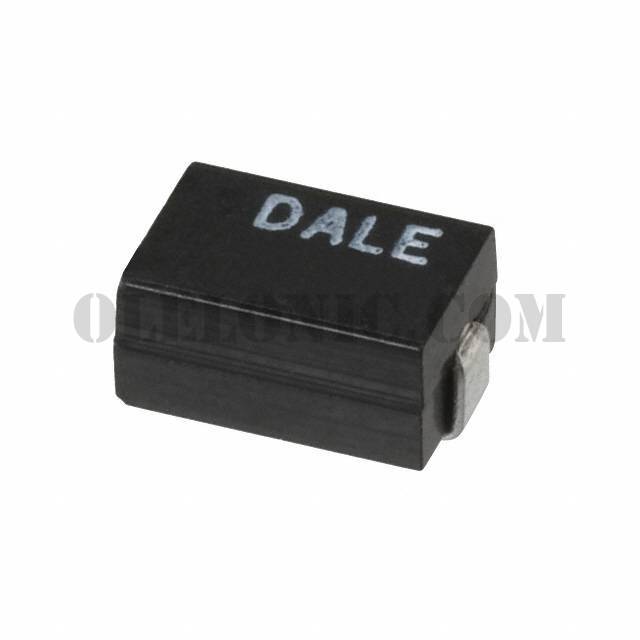

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	WSC, WSN Series
Standard Package	1
Manufacturer	Vishay Dale
Series	WSC
Packaging	Cut Tape (CT)
Part Status	Active
Resistance	2 Ohms
Tolerance	±1%
Power (Watts)	0.5W, 1/2W
Composition	Wirewound
Features	Pulse Withstanding
Temperature Coefficient	±50ppm/°C
Operating Temperature	-65°C ~ 175°C
Package / Case	2012 J-Lead
Supplier Device Package	2012
Size / Dimension	0.200" L x 0.125" W (5.08mm x 3.18mm)
Height - Seated (Max)	0.111" (2.82mm)
Number of Terminations	2
Failure Rate	-

WSC4527100R0FEA	Vishay Dale, 100 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC251510R00FEA	Vishay Dale, 10 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC452710R00FEA	Vishay Dale, 10 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC01/22R000FEA	Vishay Dale, 2 Ohms ±1% 0.5W, 1/2W Chip Resistor 2012 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC251550R00FEA	Vishay Dale, 50 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC25152K000FEA	Vishay Dale, 2 kOhms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC45271K000FEA	Vishay Dale, 1 kOhms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC45272R000FEA	Vishay Dale, 2 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC45272K000FEA	Vishay Dale, 2 kOhms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC2515100R0FEA	Vishay Dale, 100 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC692710R00FEA	Vishay Dale, 10 Ohms ±1% 3W Chip Resistor 6927 J-Lead Pulse Withstanding Wirewound, WSC	View
WSC452750R00FEA	Vishay Dale, 50 Ohms ±1% 2W Chip Resistor 4527 J-Lead Pulse Withstanding Wirewound, WSC	View

WSC01/22R000FEA

Part NumberWSC01/22R000FEA
