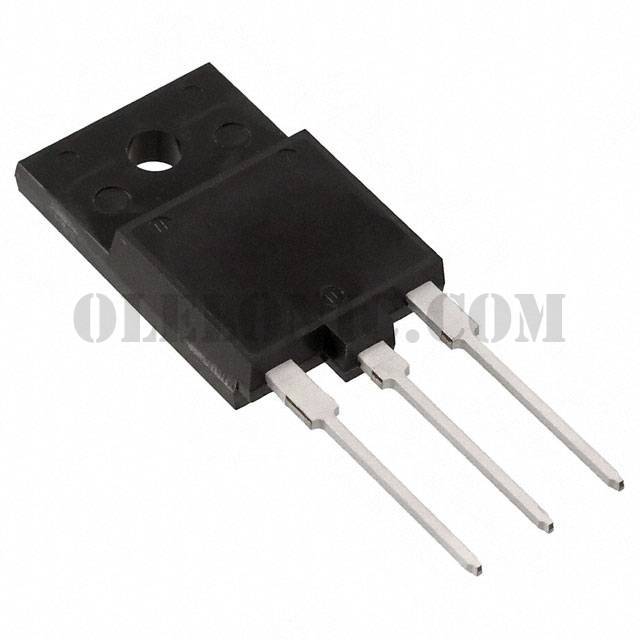

WPH4003-1E

WPH4003-1E

Part NumberWPH4003-1E

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 1700V 2.5A

DatasheetWPH4003

Package / CaseTO-3P-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1700V 2.5A (Tc) 3W (Ta), 55W (Tc) Through Hole TO-3PF

To learn about the specification of WPH4003-1E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add WPH4003-1E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of WPH4003-1E.
We are offering WPH4003-1E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

WPH4003-1E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	WPH4003
Standard Package	30
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1700V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10.5Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	48nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	850pF @ 30V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 55W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PF
Package / Case	TO-3P-3 Full Pack
