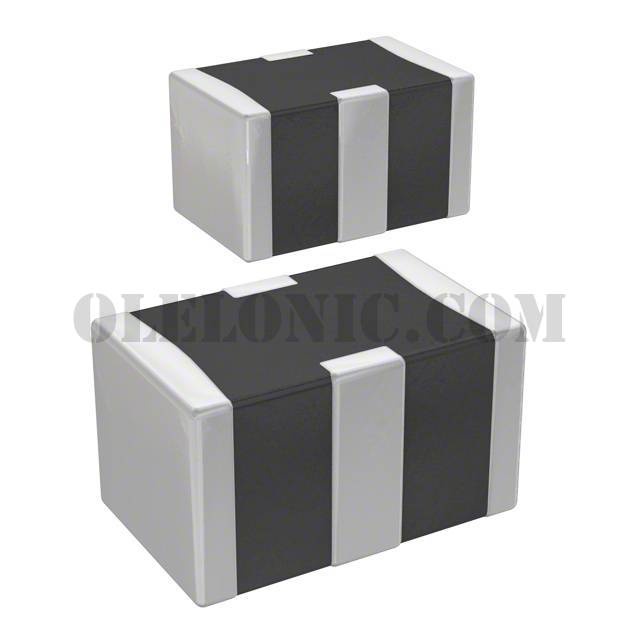

Categories	Filters / Feed Through Capacitors
Datasheet	W2(F,H), W3F Series
Standard Package	1000
Manufacturer	AVX Corporation
Series	W2F
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10000pF
Tolerance	-20%, +50%
Voltage - Rated	50V
Current	300mA
DC Resistance (DCR) (Max)	600mOhm
Operating Temperature	-55°C ~ 125°C
Insertion Loss	-
Temperature Coefficient	X7R
Ratings	AEC-Q200
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric), 4 PC Pad
Size / Dimension	0.079" L x 0.049" W (2.01mm x 1.25mm)
Height (Max)	0.045" (1.14mm)
Thread Size	-

W2F11A2208AT1F	AVX Corporation, 22pF Feed Through Capacitor 100V 300mA 600mOhm 0805 (2012 Metric), 4 PC Pad, W2F	View
W2F15C4738AT1A	AVX Corporation, Feed Through Capacitor,	View
W2F15C4728AT1A	AVX Corporation, 4700pF Feed Through Capacitor 50V 300mA 600mOhm 0805 (2012 Metric), 4 PC Pad, W2F	View
W3F11A4708AT1A	AVX Corporation, 47pF Feed Through Capacitor 100V 300mA 600mOhm 1206 (3216 Metric), 4 PC Pad, W3F	View
W2F15C2238AT1A	AVX Corporation, Feed Through Capacitor,	View
W2F15C1038AT1F	AVX Corporation, 10000pF Feed Through Capacitor 50V 300mA 600mOhm 0805 (2012 Metric), 4 PC Pad, W2F	View
W3F15C1038AT1F	AVX Corporation, 10000pF Feed Through Capacitor 50V 300mA 600mOhm 1206 (3216 Metric), 4 PC Pad, W3F	View
W3F15C2228AT1A	AVX Corporation, 2200pF Feed Through Capacitor 50V 300mA 600mOhm 1206 (3216 Metric), 4 PC Pad, W3F	View
W2F11A4718AT1F	AVX Corporation, 470pF Feed Through Capacitor 100V 300mA 600mOhm 0805 (2012 Metric), 4 PC Pad, W2F	View
W2F11A4708AT1F	AVX Corporation, 47pF Feed Through Capacitor 100V 300mA 600mOhm 0805 (2012 Metric), 4 PC Pad, W2F	View
W3F15C1038AT1F	AVX Corporation, 10000pF Feed Through Capacitor 50V 300mA 600mOhm 1206 (3216 Metric), 4 PC Pad, W3F	View
W3F11A4718AT1F	AVX Corporation, 470pF Feed Through Capacitor 100V 300mA 600mOhm 1206 (3216 Metric), 4 PC Pad, W3F	View

W2F15C1038AT1F

Part NumberW2F15C1038AT1F
