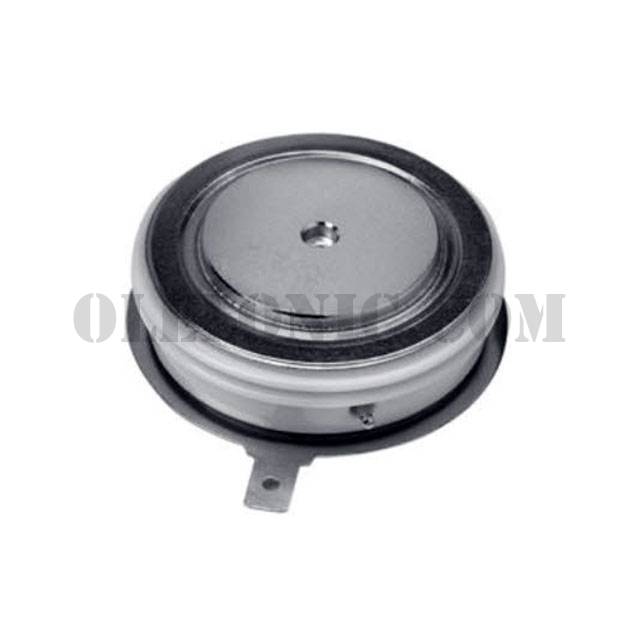

VS-ST330C14C0L

VS-ST330C14C0L

Part NumberVS-ST330C14C0L

ManufacturerVishay Semiconductor Diodes Division

DescriptionSCR 1400V 1420A E-PUK

DatasheetVS-ST330C Series

Package / CaseTO-200AB, E-PUK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 1.4kV 1420A Standard Recovery Chassis Mount TO-200AB (E-Puk)

To learn about the specification of VS-ST330C14C0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-ST330C14C0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-ST330C14C0L.
We are offering VS-ST330C14C0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-ST330C14C0L - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	VS-ST330C Series
Standard Package	12
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Voltage - Off State	1.4kV
Voltage - Gate Trigger (Vgt) (Max)	3V
Current - Gate Trigger (Igt) (Max)	200mA
Voltage - On State (Vtm) (Max)	1.96V
Current - On State (It (AV)) (Max)	720A
Current - On State (It (RMS)) (Max)	1420A
Current - Hold (Ih) (Max)	600mA
Current - Off State (Max)	50mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	7570A, 7920A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis Mount
Package / Case	TO-200AB, E-PUK
Supplier Device Package	TO-200AB (E-Puk)
