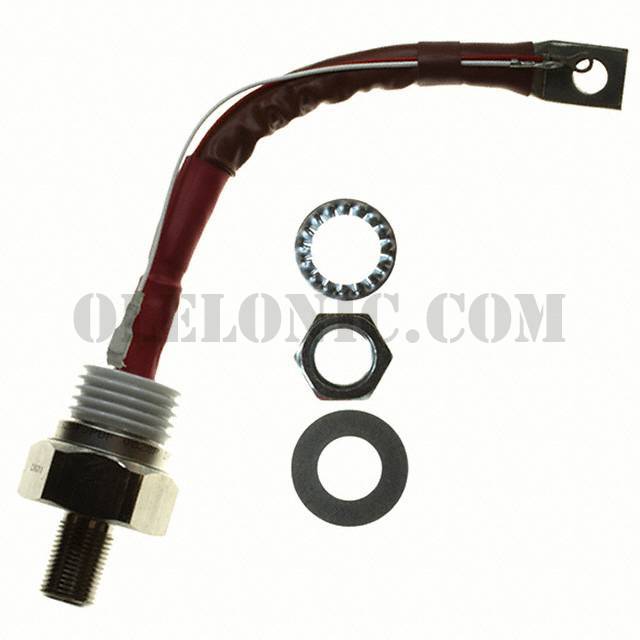

VS-ST300S20P0PBF

VS-ST300S20P0PBF

Part NumberVS-ST300S20P0PBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionSCR PHASE CTRL 2000V 300A TO-118

DatasheetST300SPbf Series

Package / CaseTO-209AE, TO-118-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 2kV 470A Standard Recovery Chassis, Stud Mount TO-209AE (TO-118)

To learn about the specification of VS-ST300S20P0PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-ST300S20P0PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-ST300S20P0PBF.
We are offering VS-ST300S20P0PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-ST300S20P0PBF - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	ST300SPbf Series
Standard Package	6
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Voltage - Off State	2kV
Voltage - Gate Trigger (Vgt) (Max)	3V
Current - Gate Trigger (Igt) (Max)	200mA
Voltage - On State (Vtm) (Max)	1.66V
Current - On State (It (AV)) (Max)	300A
Current - On State (It (RMS)) (Max)	470A
Current - Hold (Ih) (Max)	600mA
Current - Off State (Max)	30mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	8000A, 8380A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-209AE, TO-118-4, Stud
Supplier Device Package	TO-209AE (TO-118)
Base Part Number	ST300S
