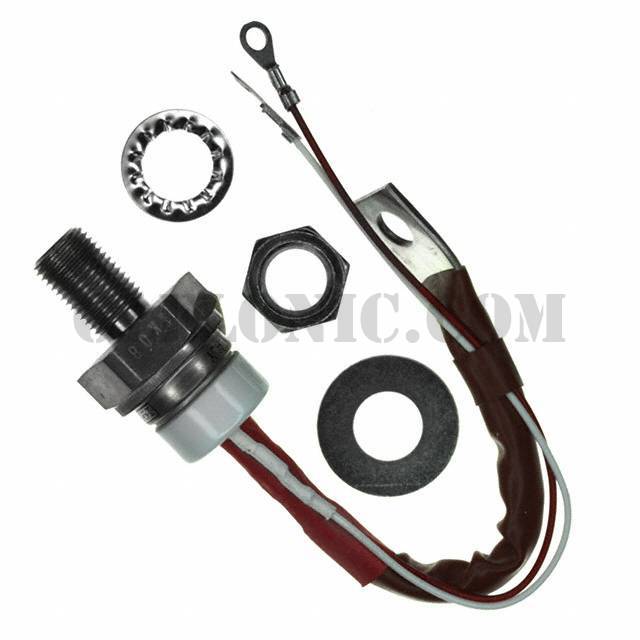

VS-ST230S16P0PBF

VS-ST230S16P0PBF

Part NumberVS-ST230S16P0PBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionSCR 1600V 360A TO-93

DatasheetST230S Series

Package / CaseTO-209AB, TO-93-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR 1.6kV 360A Standard Recovery Chassis, Stud Mount TO-209AB (TO-93)

To learn about the specification of VS-ST230S16P0PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-ST230S16P0PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-ST230S16P0PBF.
We are offering VS-ST230S16P0PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-ST230S16P0PBF - Product Attributes

Categories	Discrete Semiconductor Products / Thyristors - SCRs
Datasheet	ST230S Series
Standard Package	12
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Voltage - Off State	1.6kV
Voltage - Gate Trigger (Vgt) (Max)	3V
Current - Gate Trigger (Igt) (Max)	150mA
Voltage - On State (Vtm) (Max)	1.55V
Current - On State (It (AV)) (Max)	230A
Current - On State (It (RMS)) (Max)	360A
Current - Hold (Ih) (Max)	600mA
Current - Off State (Max)	30mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	4800A, 5000A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Mounting Type	Chassis, Stud Mount
Package / Case	TO-209AB, TO-93-4, Stud
Supplier Device Package	TO-209AB (TO-93)
