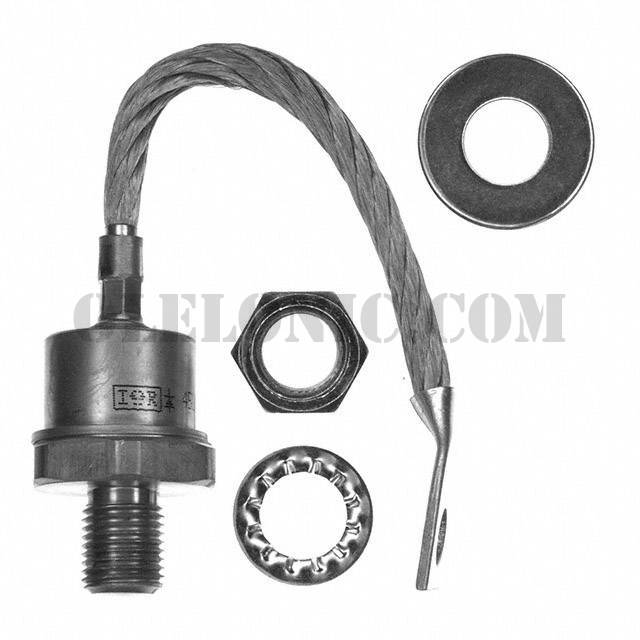

VS-SD200N20PC

VS-SD200N20PC

Part NumberVS-SD200N20PC

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 2KV 200A DO205

DatasheetSD200N/R Series

Package / CaseDO-205AC, DO-30, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 2000V 200A Stud Mount DO-205AC (DO-30)

To learn about the specification of VS-SD200N20PC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-SD200N20PC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-SD200N20PC.
We are offering VS-SD200N20PC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-SD200N20PC - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	SD200N/R Series
Standard Package	25
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	2000V
Current - Average Rectified (Io)	200A
Voltage - Forward (Vf) (Max) @ If	1.4V @ 630A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	15mA @ 2000V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-205AC, DO-30, Stud
Supplier Device Package	DO-205AC (DO-30)
Operating Temperature - Junction	-40°C ~ 180°C
