Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single

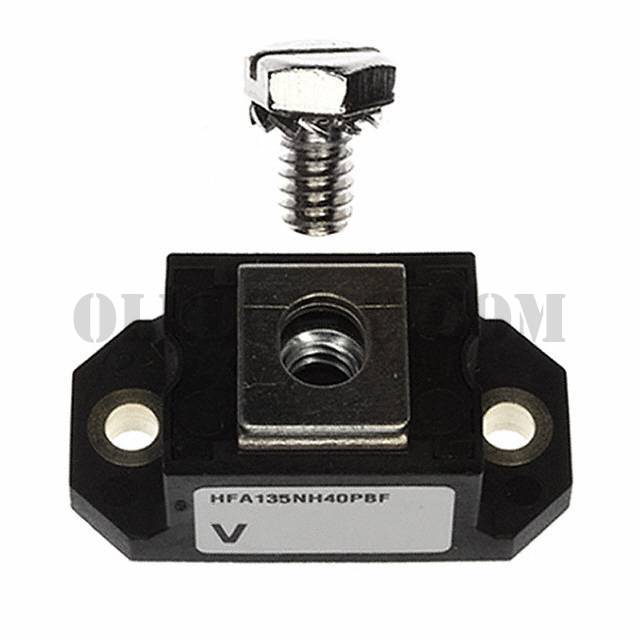

Datasheet	HFA135NH40PBF
Standard Package	20
Manufacturer	Vishay Semiconductor Diodes Division
Series	HEXFRED®
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	275A
Voltage - Forward (Vf) (Max) @ If	2V @ 270A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	120ns
Current - Reverse Leakage @ Vr	3mA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Chassis Mount
Package / Case	D-67 HALF-PAK
Supplier Device Package	HALF-PAK
