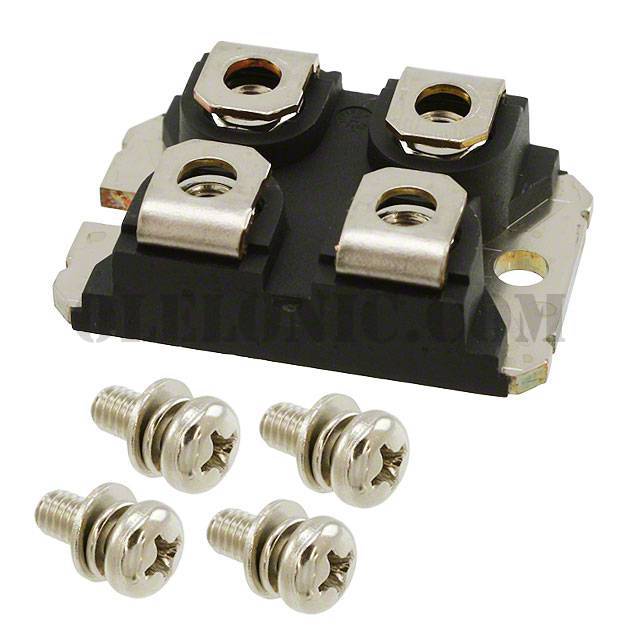

VS-GB90SA120U

Part NumberVS-GB90SA120U

ManufacturerVishay Semiconductor Diodes Division

DescriptionTRANSISTOR INSLTED GATE BIPOLAR

DatasheetVS-GB90SA120U

Package / CaseSOT-227-4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module NPT Single 1200V 149A 862W Chassis Mount SOT-227

To learn about the specification of VS-GB90SA120U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-GB90SA120U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-GB90SA120U.
We are offering VS-GB90SA120U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-GB90SA120U - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

VS-GB90SA120U

Standard Package

160

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Active

IGBT Type

NPT

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

149A

Power - Max

862W

Vce(on) (Max) @ Vge, Ic

3.9V @ 15V, 75A

Current - Collector Cutoff (Max)

250µA

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SOT-227-4

Supplier Device Package

SOT-227
