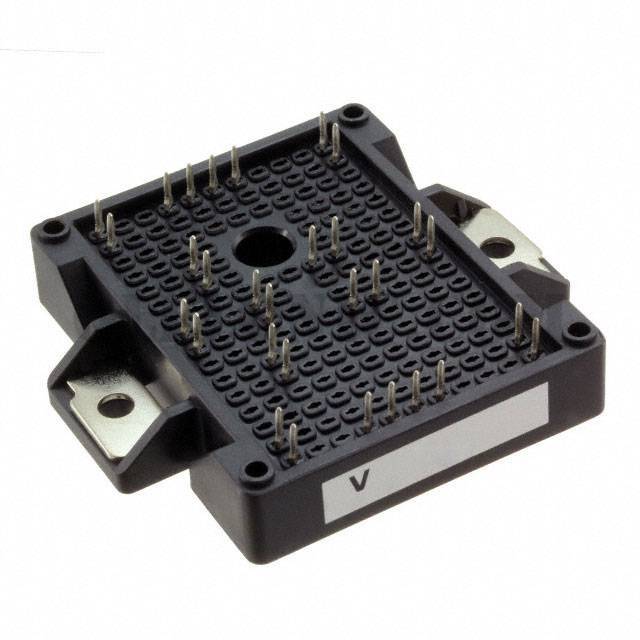

VS-ETL015Y120H

Part NumberVS-ETL015Y120H

ManufacturerVishay Semiconductor Diodes Division

DescriptionIGBT 1200V 22A 89W EMIPAK-2B

DatasheetVS-ETL015Y120H

Package / CaseEMIPAK-2B

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench 1200V 22A 89W Chassis Mount EMIPAK-2B

To learn about the specification of VS-ETL015Y120H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-ETL015Y120H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-ETL015Y120H.
We are offering VS-ETL015Y120H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-ETL015Y120H - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

VS-ETL015Y120H

Standard Package

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Active

IGBT Type

Trench

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

22A

Power - Max

89W

Vce(on) (Max) @ Vge, Ic

3.03V @ 15V, 15A

Current - Collector Cutoff (Max)

75µA

Input Capacitance (Cies) @ Vce

1.07nF @ 30V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

EMIPAK-2B

Supplier Device Package

EMIPAK-2B
