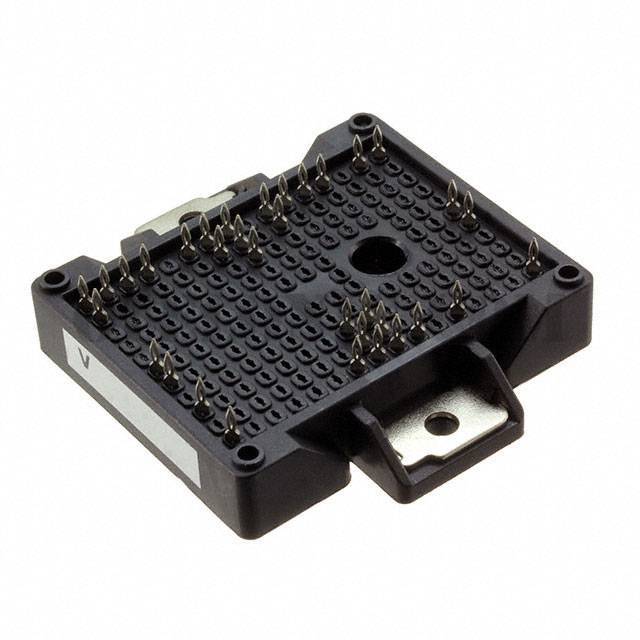

VS-ETF075Y60U

Part NumberVS-ETF075Y60U

ManufacturerVishay Semiconductor Diodes Division

DescriptionIGBT 600V 109A 294W EMIPAK-2B

DatasheetVS-ETF075Y60U

Package / CaseEMIPAK-2B

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Three Level Inverter 600V 109A 294W Chassis Mount EMIPAK-2B

To learn about the specification of VS-ETF075Y60U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-ETF075Y60U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-ETF075Y60U.
We are offering VS-ETF075Y60U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-ETF075Y60U - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

VS-ETF075Y60U

Standard Package

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Active

IGBT Type

Trench

Configuration

Three Level Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

109A

Power - Max

294W

Vce(on) (Max) @ Vge, Ic

1.93V @ 15V, 75A

Current - Collector Cutoff (Max)

100µA

Input Capacitance (Cies) @ Vce

4.44nF @ 30V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

175°C (TJ)

Mounting Type

Chassis Mount

Package / Case

EMIPAK-2B

Supplier Device Package

EMIPAK-2B
