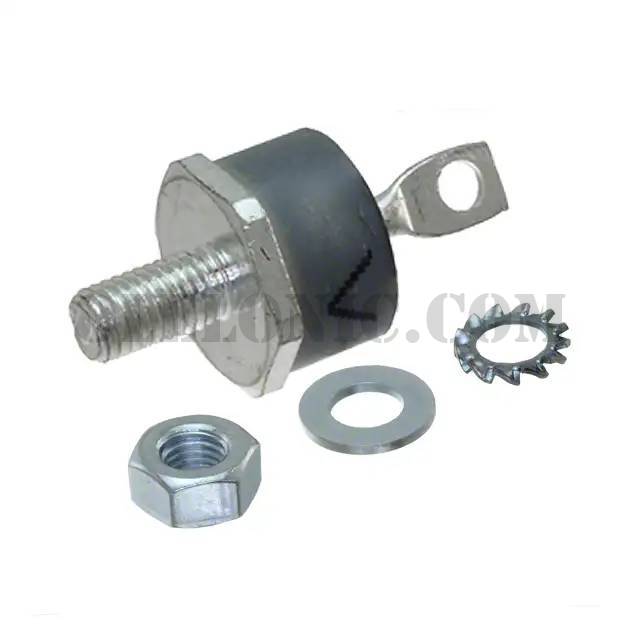

VS-80PFR80

VS-80PFR80

Part NumberVS-80PFR80

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 800V 80A DO203AB

DatasheetVS-80PF(R)40,80,120(W) Series

Package / CaseDO-203AB, DO-5, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard, Reverse Polarity 800V 80A Chassis, Stud Mount DO-203AB (DO-5)

To learn about the specification of VS-80PFR80, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-80PFR80 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-80PFR80.
We are offering VS-80PFR80 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-80PFR80 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-80PF(R)40,80,120(W) Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	800V
Current - Average Rectified (Io)	80A
Voltage - Forward (Vf) (Max) @ If	1.4V @ 220A
Speed	Standard Recovery >500ns, > 200mA (Io)
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Supplier Device Package	DO-203AB (DO-5)
Operating Temperature - Junction	-55°C ~ 180°C
