Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-6ESH02HM3
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	Automotive, AEC-Q101, FRED Pt®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	6A
Voltage - Forward (Vf) (Max) @ If	940mV @ 6A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	22ns
Current - Reverse Leakage @ Vr	2µA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount

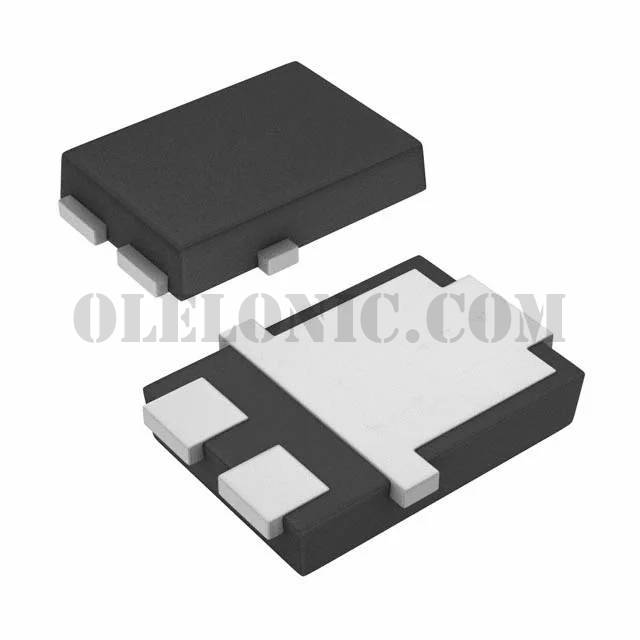

Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	TO-277A (SMPC)
Operating Temperature - Junction	-65°C ~ 175°C
