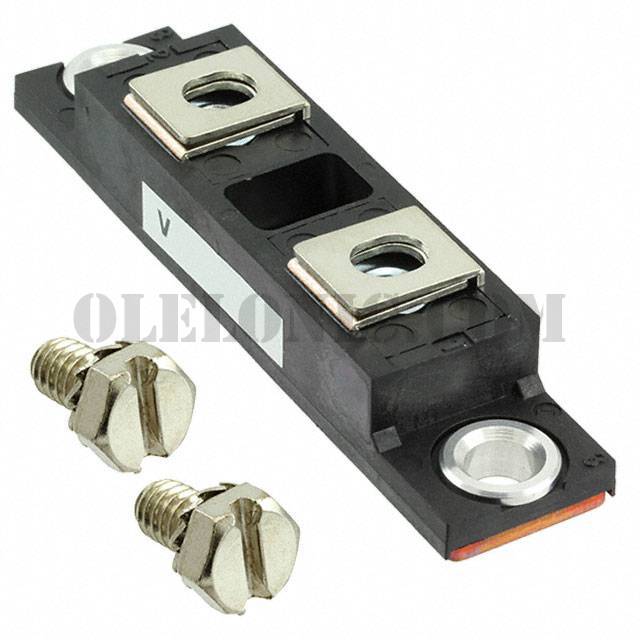

VS-403CNQ100PBF

Part NumberVS-403CNQ100PBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE MODULE 100V 200A TO244

DatasheetVS-403CNQ100PbF

Package / CaseTO-244AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 100V 200A Chassis Mount TO-244AB

To learn about the specification of VS-403CNQ100PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-403CNQ100PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-403CNQ100PBF.
We are offering VS-403CNQ100PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-403CNQ100PBF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	VS-403CNQ100PbF
Standard Package	10
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io) (per Diode)	200A
Voltage - Forward (Vf) (Max) @ If	840mV @ 200A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	6mA @ 100V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount
Package / Case	TO-244AB
Supplier Device Package	TO-244AB
