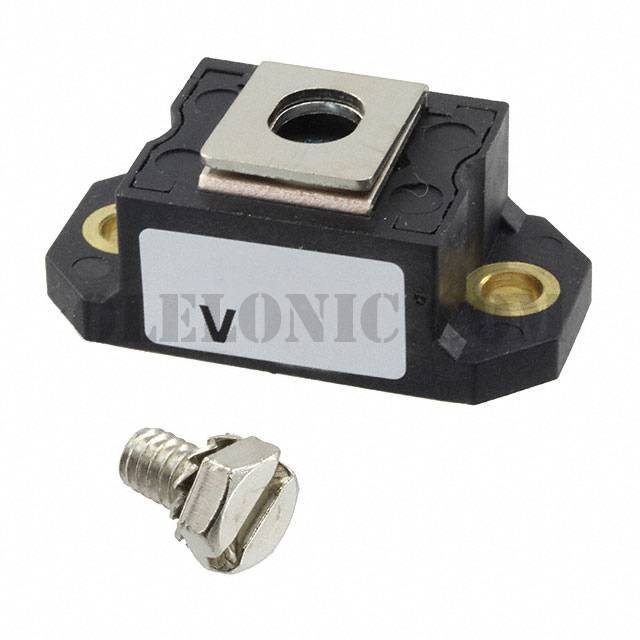

VS-249NQ150PBF

VS-249NQ150PBF

Part NumberVS-249NQ150PBF

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE SCHOTTKY 150V 240A HALFPAK

DatasheetVS-249NQ150PbF

Package / CaseD-67 HALF-PAK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 150V 240A Chassis Mount HALF-PAK

To learn about the specification of VS-249NQ150PBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-249NQ150PBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-249NQ150PBF.
We are offering VS-249NQ150PBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-249NQ150PBF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-249NQ150PbF
Standard Package	20
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	240A
Voltage - Forward (Vf) (Max) @ If	1.21V @ 240A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	6mA @ 150V
Capacitance @ Vr, F	6000pF @ 5V, 1MHz
Mounting Type	Chassis Mount
Package / Case	D-67 HALF-PAK
Supplier Device Package	HALF-PAK
Operating Temperature - Junction	-55°C ~ 175°C
