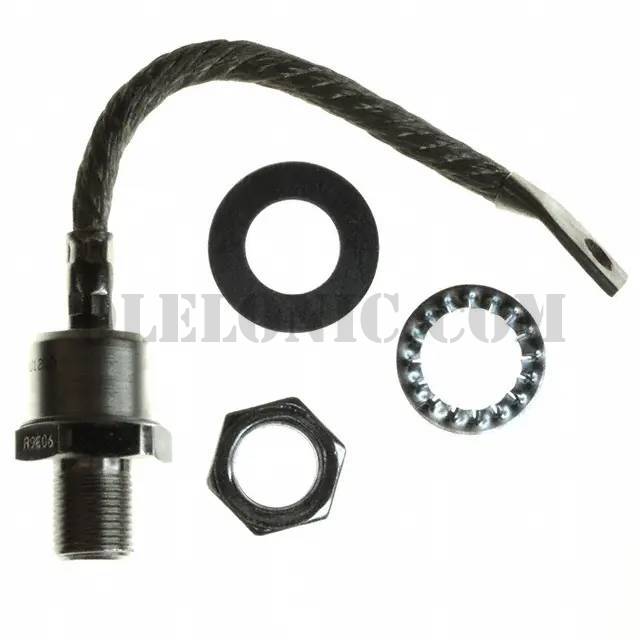

VS-240U120D

VS-240U120D

Part NumberVS-240U120D

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 1.2KV 320A DO205

Datasheet240U(R) Series

Package / CaseDO-205AB, DO-9, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1200V 320A Stud Mount DO-205AB, DO-9

To learn about the specification of VS-240U120D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-240U120D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-240U120D.
We are offering VS-240U120D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-240U120D - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	240U(R) Series
Standard Package	12
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	320A
Voltage - Forward (Vf) (Max) @ If	1.33V @ 750A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	15mA @ 1200V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-205AB, DO-9, Stud
Supplier Device Package	DO-205AB, DO-9
Operating Temperature - Junction	-40°C ~ 180°C
