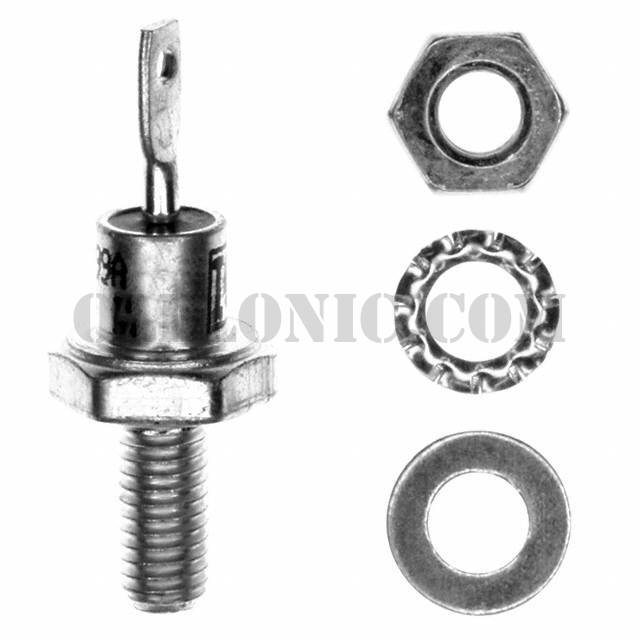

VS-16FL100S05

VS-16FL100S05

Part NumberVS-16FL100S05

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 1KV 16A DO203AA

DatasheetVS-(6,12,16)FL(R)

Package / CaseDO-203AA, DO-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 16A Chassis, Stud Mount DO-203AA

To learn about the specification of VS-16FL100S05, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-16FL100S05 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-16FL100S05.
We are offering VS-16FL100S05 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-16FL100S05 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-(6,12,16)FL(R)
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	16A
Voltage - Forward (Vf) (Max) @ If	1.4V @ 16A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	500ns
Current - Reverse Leakage @ Vr	50µA @ 1000V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AA, DO-4, Stud
Supplier Device Package	DO-203AA
Operating Temperature - Junction	-65°C ~ 150°C
