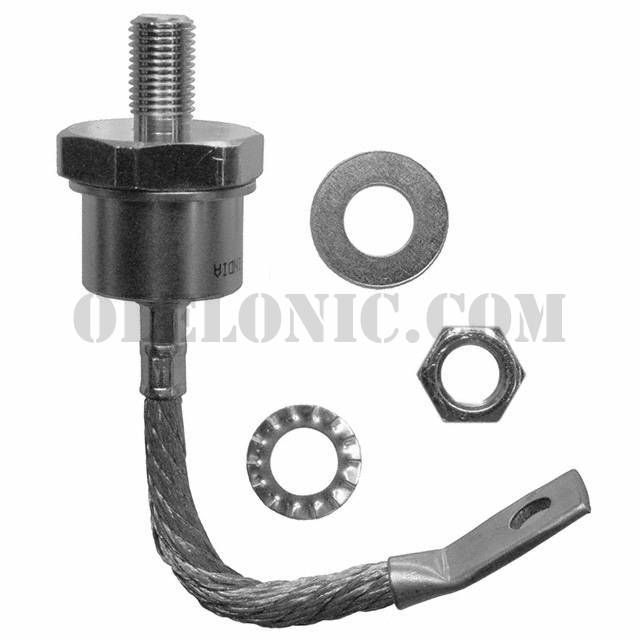

VS-150U100DL

VS-150U100DL

Part NumberVS-150U100DL

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GP 1000V 150A DO-8

Datasheet150U(R).. Series

Package / CaseDO-205AA, DO-8, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 1000V 150A Chassis, Stud Mount DO-205AA (DO-8)

To learn about the specification of VS-150U100DL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-150U100DL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-150U100DL.
We are offering VS-150U100DL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-150U100DL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	150U(R).. Series
Standard Package	25
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	150A
Voltage - Forward (Vf) (Max) @ If	1.47V @ 600A
Speed	Standard Recovery >500ns, > 200mA (Io)
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-205AA, DO-8, Stud
Supplier Device Package	DO-205AA (DO-8)
Operating Temperature - Junction	-40°C ~ 180°C
