Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	45L(R),150K(R),150KS(R)
Standard Package	25
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	150A
Voltage - Forward (Vf) (Max) @ If	1.33V @ 471A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	35mA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-205AA, DO-8, Stud
Supplier Device Package	DO-205AA (DO-8)
Operating Temperature - Junction	-40°C ~ 200°C

DUR75120W	Littelfuse Inc., Diode Standard 1200V 75A Through Hole TO-247AC, DUR	View
S3A	ON Semiconductor, Diode Standard 50V 3A Surface Mount SMC (DO-214AB),	View
1N4933RLG	ON Semiconductor, Diode Standard 50V 1A Through Hole DO-41,	View
ESDLW RVG	Taiwan Semiconductor Corporation, Diode Standard 200V 800mA Surface Mount SOD-123W,	View
P600D-E3/73	Vishay Semiconductor Diodes Division, Diode Standard 200V 6A Through Hole P600,	View
CMR1F-10M TR13	Central Semiconductor Corp, Diode Standard 1000V 1A Surface Mount SMA,	View
JAN1N5550	Microsemi Corporation, Diode Standard 200V 3A Through Hole, Military, MIL-PRF-19500/420	View
FR40MR05	GeneSiC Semiconductor, Diode Standard, Reverse Polarity 1000V 40A Chassis, Stud Mount DO-5,	View
A1N4007G-G	Comchip Technology, Diode Standard 1000V 1A Through Hole DO-41, Automotive, AEC-Q101	View
UG2B-E3/54	Vishay Semiconductor Diodes Division, Diode Standard 100V 2A Through Hole DO-204AC (DO-15),	View
RR1VWM6STFTR	Rohm Semiconductor, Diode Standard 600V 1A Surface Mount PMDE, Automotive, AEC-Q101	View
US1GWF-7	Diodes Incorporated, Diode Standard 400V 1A Surface Mount SOD-123F, Automotive, AEC-Q101	View

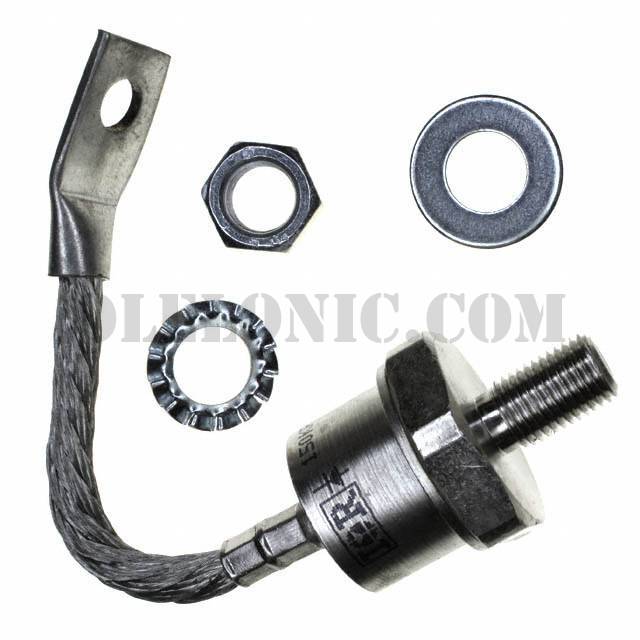

VS-150KR40A
