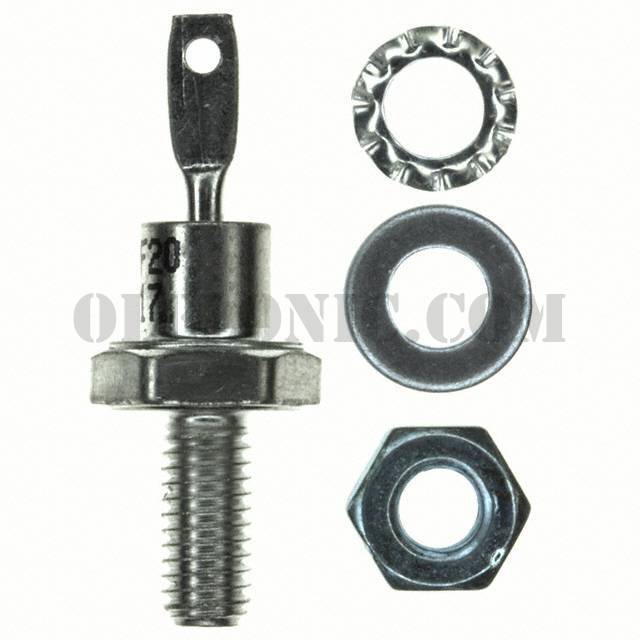

VS-12F20

VS-12F20

Part NumberVS-12F20

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE GEN PURP 200V 12A DO203AA

Datasheet12F(R) Series

Package / CaseDO-203AA, DO-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 12A Chassis, Stud Mount DO-203AA

To learn about the specification of VS-12F20, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VS-12F20 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VS-12F20.
We are offering VS-12F20 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VS-12F20 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	12F(R) Series
Standard Package	100
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	12A
Voltage - Forward (Vf) (Max) @ If	1.26V @ 38A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	12mA @ 200V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AA, DO-4, Stud
Supplier Device Package	DO-203AA
Operating Temperature - Junction	-65°C ~ 175°C
Base Part Number	12F20
