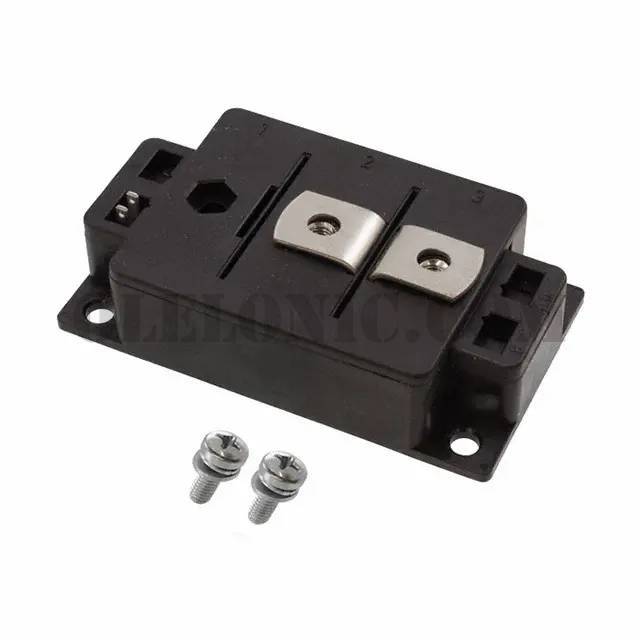

VMO580-02F

VMO580-02F

Part NumberVMO580-02F

ManufacturerIXYS

DescriptionMOSFET N-CH 200V 580A MODULE

DatasheetVMO580-02F

Package / CaseY3-Li

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 580A (Tc) Chassis Mount Y3-Li

To learn about the specification of VMO580-02F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VMO580-02F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VMO580-02F.
We are offering VMO580-02F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VMO580-02F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	VMO580-02F
Standard Package	2
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	580A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.8mOhm @ 430A, 10V
Vgs(th) (Max) @ Id	4V @ 50mA
Gate Charge (Qg) (Max) @ Vgs	2750nC @ 10V
Vgs (Max)	±20V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	Y3-Li
Package / Case	Y3-Li
Base Part Number	VMO
