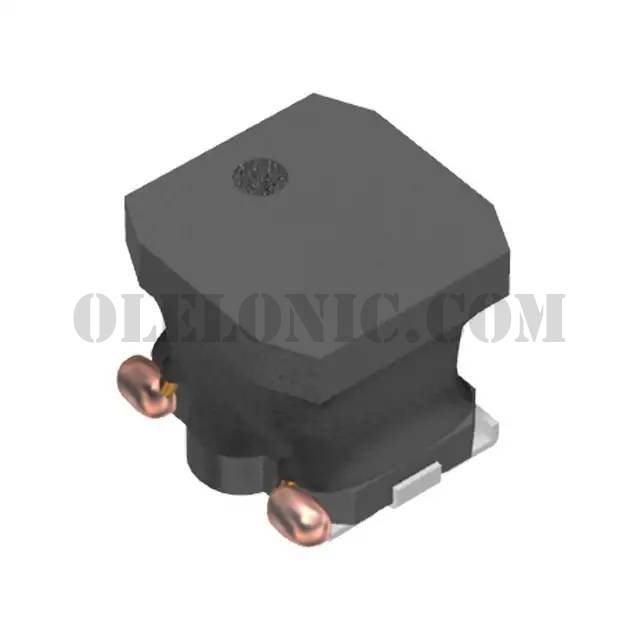

VLS5045EX-4R7M-H
VLS5045EX-4R7M-H
Part Number VLS5045EX-4R7M-H
Description INDUCTORS FOR POWER CIRCUITS, AU
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 4.7µH Shielded Wirewound Inductor 3.2A 46.8mOhm Max Nonstandard
To learn about the specification of VLS5045EX-4R7M-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VLS5045EX-4R7M-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VLS5045EX-4R7M-H.
We are offering VLS5045EX-4R7M-H for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
VLS5045EX-4R7M-H - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet VLS-EX-H Series, Automotive
Standard Package 1
Manufacturer TDK Corporation
Series VLS-EX-H
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7µH
Tolerance ±20%
Current Rating (Amps) 3.2A
Current - Saturation 4.4A
Shielding Shielded
DC Resistance (DCR) 46.8mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.209" L x 0.197" W (5.30mm x 5.00mm)
Height - Seated (Max) 0.177" (4.50mm)
