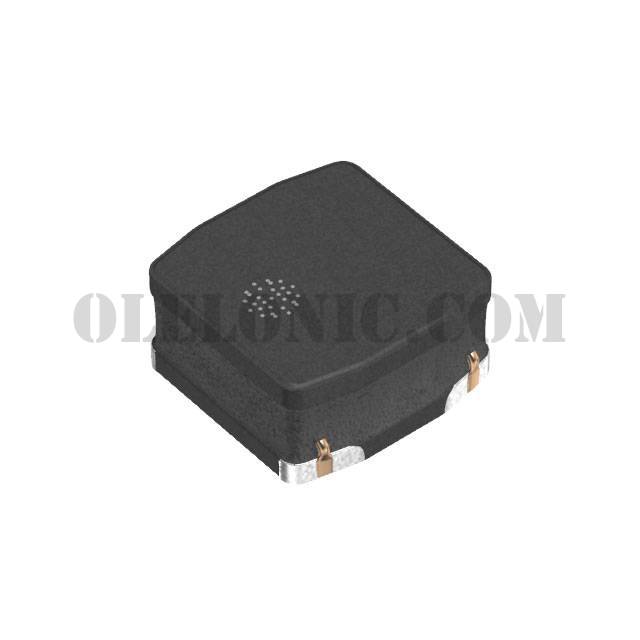

VLS3015CX-470M-1
VLS3015CX-470M-1
Part Number VLS3015CX-470M-1
Description IND PWR CIR WOUND FERRITE MATERI
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 47µH Shielded Wirewound Inductor 590mA 1.441mOhm Max Nonstandard
To learn about the specification of VLS3015CX-470M-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VLS3015CX-470M-1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VLS3015CX-470M-1.
We are offering VLS3015CX-470M-1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
VLS3015CX-470M-1 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet VLS3015CX-1 Type Datasheet
Standard Package 1
Manufacturer TDK Corporation
Series VLS-CX-1
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47µH
Tolerance ±20%
Current Rating (Amps) 590mA
Current - Saturation 410mA
Shielding Shielded
DC Resistance (DCR) 1.441mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
