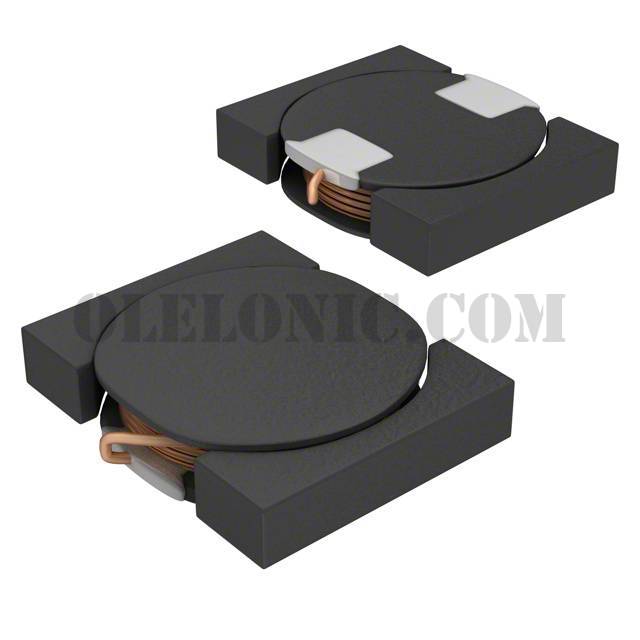

VLF504010MT-220M

Part NumberVLF504010MT-220M

ManufacturerTDK Corporation

DescriptionFIXED IND 22UH 780MA 600 MOHM

DatasheetVLF504010MT Series, Commercial

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Wirewound Inductor 780mA 600mOhm Max Nonstandard

To learn about the specification of VLF504010MT-220M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add VLF504010MT-220M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of VLF504010MT-220M.
We are offering VLF504010MT-220M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

VLF504010MT-220M - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

VLF504010MT Series, Commercial

Standard Package

Manufacturer

TDK Corporation

Series

VLF-M

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

22µH

Tolerance

±20%

Current Rating (Amps)

780mA

Current - Saturation

610mA

Shielding

Shielded

DC Resistance (DCR)

600mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

1MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.197" L x 0.157" W (5.00mm x 4.00mm)

Height - Seated (Max)

0.039" (1.00mm)
