V30K45-M3/H

V30K45-M3/H

Part NumberV30K45-M3/H

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE SCHOTTKY 30A 45V FLATPAK

DatasheetV30K45

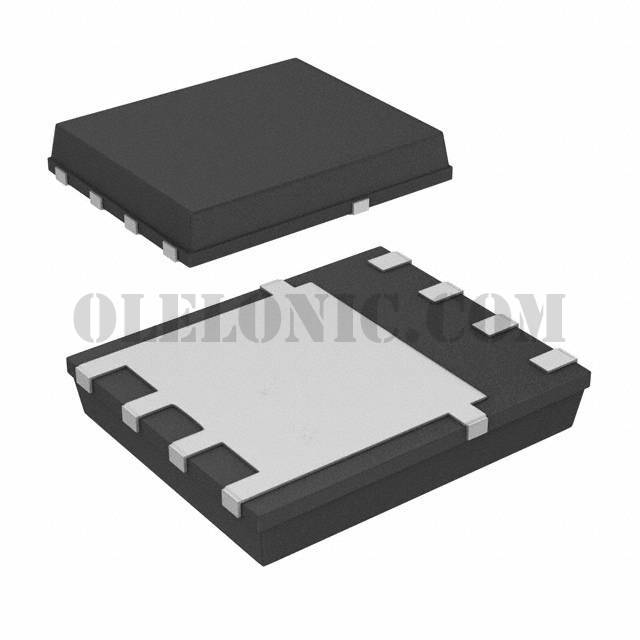

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 45V 30A Surface Mount FlatPAK (5x6)

To learn about the specification of V30K45-M3/H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add V30K45-M3/H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of V30K45-M3/H.
We are offering V30K45-M3/H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

V30K45-M3/H - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	V30K45
Standard Package	1500
Manufacturer	Vishay Semiconductor Diodes Division
Series	Automotive, AEC-Q101, TMBS®
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	630mV @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	2mA @ 45V
Capacitance @ Vr, F	4000pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	FlatPAK (5x6)
Operating Temperature - Junction	-40°C ~ 150°C
